Data Center

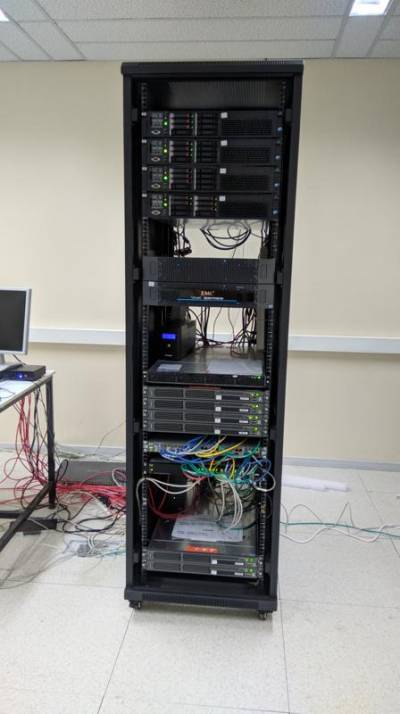

Rack #1 (top to bottom)
HP DL380G7 (ESXi #3)
| Guests | clonezilla SE (drbl) gatepc73 gatepc74 gatepc76 (inactive) charybdis jupiter |
|---|---|
| OS | ESXi v5.5 |
| IP | 10.7.4.125 |
| iLO | 10.1.2.104 |
| mgmt IP | 10.1.2.204 |
| Make | HP |
| Model | DL380G7 |
| CPU(s) | Intel Xeon E5620 @2.40GHz |
| RAM | 24GB |
| Storage | 3x300GB 10K SAS DP, RAID-5 |
| P/N | 589152-421 |
| S/N | CZ22220142 |
| Name | Services |
|---|---|
 |
HP DL380G6 (ESXi #2)
| Guests | uranus-debian zeus-debian |
|---|---|
| OS | ESXi v5.5 |
| IP | 10.7.4.7 |
| iLO | 10.1.2.103 |
| mgmt IP | 10.1.2.203 |
| Make | HP |
| Model | DL380G6 |
| CPU(s) | Intel Xeon E5520 @2.27GHz |
| RAM | 6GB |
| Storage | 3x300GB, RAID-5 |
| P/N | 470065-082 |
| S/N | CZ2047J8R0 |
| Name | Services |
|---|---|
| |
3x iSCSI disks for uranus:
Port #3 to EMC VNXe3100 SPA port #3 Port #4 to EMC VNXe3100 SPB port #3
HP DL380G6 (ESXi #1)
| Guests | iro thalis-www titan-printserver calliope-www |
|---|---|
| OS | ESXi v5.5 |
| IP | 10.7.4.6 |
| iLO | 10.1.2.102 |
| mgmt IP | 10.1.2.202 |
| Make | HP |
| Model | DL380G6 |
| CPU(s) | Intel Xeon E5520 @2.27GHz |
| RAM | 6GB |
| Storage | 3x146GB, RAID-5 |
| P/N | 470065-082 |
| S/N | CZ2120003L |
| Name | Services |
|---|---|
| |
26/10/2016 Αλλαγή δίσκου 146GB, 10K RPM, SAS από 2ο bay
HP DL380G6 (gaia)
| Name | gaia |
|---|---|
| Services | e-mail, DNS server |
| OS | FreeBSD 8.2 |
| IP | 195.130.121.201 |
| iLO | 10.1.2.105 |
| mgmt IP | 10.1.2.205 |
| Make | HP |
| Model | DL380G6 |
| CPU(s) | 2xIntel Xeon L5520 @2.27GHz |
| RAM | 16GB |
| Storage | 2x80GB RAID-1, 3x300GB, RAID-5 |
| P/N | 491332-421 |
| S/N | CZC9394ZBL |
3/2018 Μηχάνημα σε αντικατάσταση προηγούμενου DL380G6 με πρόβλημα στο HDD backplane.
EMC VNXe3100 (NAS)
8GB RAM, 18x1TB NL-SAS, 3xRAID6(6-disk) groups, 3×3.7TB usable.
Serial console to SPA @9600 from Lazarus FreeBSD guest (“tip com1”).
Restart failed management services:
# svc_restart_service restart MGMT
Check peer SP:
# ping peer
Shutdown:
# svc_shutdown --system-halt
Diag:
# svc_diag --state=basic # svc_diag --state=software # svc_sysstatus
Change UTP redundant cables to ESXI #2 (iSCSI).
HP DL165G5p (glaucus)
| Name | glaucus |
|---|---|
| ID | XEN01 |
| Services | test |
| OS | Debian 9.8 |
| IP | 195.130.121.246 |
| iLO | – |
| mgmt IP | 10.1.2.31 |
| Make | HP |
| Model | DL165G5p |
| CPU(s) | AMD Opteron™ Processor 2376 |
| RAM | 8GB |
| Storage | md0: 2x160GB, md1: 2x1TB |
| P/N | – |
| S/N | – |
4/2019 Initial installation
HP DL145G2 (FBSD test)
| Name | FBSD test |
|---|---|
| ID | CN176 |
| Services | test |
| OS | FreeBSD 11.2 |
| IP | 192.168.168.214 |
| iLO | – |
| mgmt IP | – |
| Make | HP |
| Model | DL145G2 |
| CPU(s) | 2xAMD Opteron 248 @2.2GHz |
| RAM | 4GB |
| Storage | 2x80GB RAID-1 |
| P/N | – |
| S/N | – |
5/2019 Initial installation
HP DL145G2 (titan)
| Name | titan |
|---|---|
| ID | CN122 |
| Services | cups+pykota print server |
| OS | FreeBSD 6.2 |
| IP | 195.130.121.12 |
| iLO | 10.1.2.12 |
| mgmt IP | – |
| Make | HP |
| Model | DL145G2 |
| CPU(s) | 2xAMD Opteron 248 @2.2GHz |
| RAM | 4GB (3GB usable - i386) |
| Storage | 2x80GB RAID-1 |
| P/N | – |
| S/N | – |
14/5/2019 Machine cloned from Antec 2xP4.
HP DL145G2 (scylla)
| Name | scylla |
|---|---|
| ID | CN173 |
| Services | cups+pykota print server |
| OS | FreeBSD 8.1 |
| IP | 195.130.121.45 |
| iLO | 10.1.2.45 |
| mgmt IP | – |
| Make | HP |
| Model | DL145G2 |
| CPU(s) | 2xAMD Opteron 248 @2.2GHz |
| RAM | 4GB |
| Storage | 2x80GB RAID-1 |
| P/N | – |
| S/N | – |
10/5/2019 Machine cloned from Sun Ultra20.
HP DL145G2 (csforum)
| Name | csforum |
|---|---|
| ID | CN117 |
| Services | CS students blog |
| OS | Debian 9.8 |
| IP | 195.130.121.30 |
| iLO | 10.1.2.30 |
| mgmt IP | – |
| Make | HP |
| Model | DL145G2 |
| CPU(s) | 2xAMD Opteron 248 @2.2GHz |
| RAM | 4GB |
| Storage | 2x80GB RAID-1 |
| P/N | – |
| S/N | – |
4/2019 Created.
Hp Procurve 2848 J4904A Switch
IP: 10.1.2.253
| Port # | VLAN | Mode | Description | Notes |
|---|---|---|---|---|
| 1 | 121 | Access | glaucus | |
| 2 | 121 | Access | csforum | |
| 3 | 121 | Access | ||
| 4 | 121 | Access | zeus | |
| 5 | 121 | Access | ||
| 6 | 121 | Access | unused | |
| 7 | 121 | Access | ||
| 8 | 121 | Access | unused | |
| 9 | 121 | Access | emerson close control | |
| 10 | 121 | Access | unused | |
| 11 | 121 | Access | ||
| 12 | 121 | Access | unused | |
| 13 | 121 | Access | unused | |
| 14 | 121 | Access | unused | |
| 15 | 121 | Access | unused | |
| 16 | 121 | Access | unused | |
| 17 | 73 | Access | unused | |
| 18 | 73 | Access | ESXi #3 (gatepc73) | |
| 19 | 73 | Access | unused | |
| 20 | 73 | Access | unused | |
| 21 | 73 | Access | glaucus | |
| 22 | 73 | Access | unused | |
| 23 | 73 | Access | down? | |
| 24 | 73 | Access | unused | |
| 25 | 73 | Access | unused | |
| 26 | 73 | Access | unused | |
| 27 | 73 | Access | unused | |
| 28 | 73 | Access | unused | |
| 29 | 73 | Access | unused | |
| 30 | 73 | Access | unused | |
| 31 | 73 | Access | unused | |
| 32 | 73 | Access | uplink to Cisco #18 | |
| 33 | 74 | Access | ||
| 34 | 74 | Access | unused | |
| 35 | 74 | Access | ||
| 36 | 74 | Access | unused | |
| 37 | 74 | Access | ||
| 38 | 74 | Access | unused | |
| 39 | 74 | Access | ||
| 40 | 74 | Access | unused | |
| 41 | 74 | Access | unused | |
| 42 | 74 | Access | unused | |
| 43 | 74 | Access | unused | |
| 44 | 1 | Access | uplink to mgmt HP | |
| COMBO | ||||
| 45 | 121 | Access | downlink from Cisco #21 | |
| 46 | 73 | Access | downlink from VLAN73 (PL.2.2.83.A) | |
| 47 | 74 | Access | downlink from Cisco #5 | |
| 48 | 1 | Access | MGMT | |
5/2019 Απόκτηση από Κέντρο Προσομοιώσεων.
Cisco SG200-26 Gigabit Smart Switch
IP: 10.1.2.254
| Port # | VLAN | Mode | Description | Notes |
|---|---|---|---|---|
| 1 | 74 | Access | ESXi #3 (drbl, gatepc74, charybdis) port #2 | |
| 2 | 74 | Access | ESXi #2 (uranus, zeus-debian) port #1 | |
| 3 | 74 | Access | ESXi #3 mgmt (10.7.4.125) port #1 | |
| 4 | 74 | Access | gaia74 port #2 | |
| 5 | 74 | Access | uplink to HP Procurve 2848 #47 | |
| 6 | 74 | Access | unused | |
| 7 | 74 | Access | EMC VNXe3100 10.7.4.2 | |
| 8 | 74 | Access | EMC VNXe3100 mgmt 10.7.4.9 | |
| 9 | 74 | Access | EMC VNXe3100 mgmt B | |
| 10 | 74 | Access | EMC VNXe3100 | |
| 11 | 74 | Access | unused | |
| 12 | 74 | Access | ESXi #1 (titan-new, thalis-vlan74, calliope-vlan74, iro-vlan74) port #1 | |
| 13 | 1T, 73T, 74UP, 121T | Trunk | glaucus trunk | |
| 14 | 1T, 73T, 74UP, 121T | Trunk | vkm trunk | |
| 15 | 1 | Access | uplink to mgmt, ilo access | |
| 16 | 1UP, 74T, 121T | Trunk | ESXi #2 test trunk port #3 | |
| 17 | 73UP,74T | Trunk | cluster-trunk | |
| 18 | 73 | Access | downlink from HP Procurve 2848 #32 | |
| 19 | 121 | Access | gaia-public port #1 | |
| 20 | 121 | Access | ESXI #3-public port #3 | |
| 21 | 121 | Access | uplink to HP Procurve 2848 #45 | |
| 22 | 121 | Access | ESXi #2 (uranus, zeus-debian) port #2 | |
| 23 | 121 | Access | ESXi #1-public port #2 | |
| 24 | 1UP, 74T, 121T | Trunk | ESXi #3 test trunk (extension port #1) | |
| COMBO | ||||
| 25 | 74 | Access | downlink from VLAN74 (PL.2.2.82.B) | |
| 26 | 121 | Access | downlink from PUBLIC (PL.2.2.81.B) | |
HP DL145G2 (aeolus)
| Name | aeolus |
|---|---|
| ID | CN127 |
| Services | close-control monitoring |
| OS | Debian 9.8 |
| IP | 195.130.121.150 |
| iLO | 10.1.2.150 |
| mgmt IP | – |
| Make | HP |
| Model | DL145G2 |
| CPU(s) | 2xAMD Opteron 248 @2.2GHz |
| RAM | 4GB |
| Storage | 2x80GB RAID-1 |
| P/N | – |
| S/N | – |
5/2019 Machine cloned from Sun Ultra20.
HP DL145G2 (rescue)
| Name | rescue |
|---|---|
| ID | CN180 |
| Services | rescue system |
| OS | Debian 9.8 |
| IP | 195.130.121.49 |
| iLO | 10.1.2.49 |
| mgmt IP | – |
| Make | HP |
| Model | DL145G2 |
| CPU(s) | 2xAMD Opteron 248 @2.2GHz |
| RAM | 4GB |
| Storage | 2x80GB RAID-1 |
| P/N | – |
| S/N | – |
5/2019 Machine cloned from Sun Ultra20.
Rack #2 (top to bottom)
HP Procurve 2680
IP: 10.1.2.254
Out of rack
Altusen KVM over IP
| Port # | Machine |
|---|---|
| 01 | gaia |
| 02 | esxi2 |
| 03 | esxi3 |
| 04 | esxi4 |
| 05 | titan |
| 06 | aeolus |
| 07 | scylla |
| 08 | rescue |
To be installed in the rack.
HP Procurve management switch
To be installed in the rack.
Sun Fire v480 (zeus)
| Name | old zeus |
|---|---|
| Services | – |
| OS | Solaris/sparc 9 |
| IP | 195.130.121.11 |
| iLO | – |
| mgmt IP | – |
| Make | Sun |
| Model | Fire v480R |
| CPU(s) | 2xSun UltraSparc III+ 1200MHz |
| RAM | 8GB |
| Storage | 2x72GB SCSI, RAID-1 |
| P/N | – |
| S/N | – |
To decommission.
Decommissioned
HP DL380G6 (old gaia)
| Name | old gaia |
|---|---|
| Services | – |
| OS | ESXi 5.5U3 |
| IP | – |
| iLO | 10.1.2.101 |
| mgmt IP | 10.1.2.201 |
| Make | HP |
| Model | DL380G6 |
| CPU(s) | Intel Xeon E5520 @2.27GHz |
| RAM | 12GB |
| Storage | – |
| P/N | 470065-082 |
| S/N | CZ2047J8R1 |
3/2018 Decommissioned, Smartarray P410i unusable (backplane failed?).
30/5/2019 Ο Λάζαρος αναστήθηκε! Το πρόβλημα ήταν η γραμμή 12V στο βύσμα τροφοδοσίας του SAS backplane, J24. Ευτυχώς υπάρχει δίπλα το J23 για προαιρετικό δεύτερο SAS backplane και cage το οποίο βγάζει σωστές τάσεις!
| J24 | J23 | |||
|---|---|---|---|---|
| 0V | 5V | 12V | 5V | |
| GND | GND | GND | GND | |
| 3V3 | 3V3 | 3V3 | 3V3 | |
| GND | GND | GND | GND | |
| 0V | 5V | 12V | 5V | |
3/6/2019 Πιθανό σφάλμα στο cache module του smartarray (462975-001, 512MB). Κρεμάει το disk array με σφάλμα lockout 0x14. Μετά από αφαίρεση το ESXi 6.5U2 HPE custom image κάνει κανονικά εγκατάσταση και λειτουργεί.
6/6/2019 Εγκατάσταση ESXi 5.5 και ενημέρωση σε 5.5U3 που λειτουργεί σωστά με το cache module (χωρίς μπαταρία). Επιπλέον εγκατάσταση esxui για web πρόσβαση στη διαχείριση.
13/6/2019 Δίσκοι: 2x300GB RAID-1 (datastore1), 2x146GB faulty (scratch), 4x300GB RAID-1+0 (space)
Miscellaneous
Patch cord legend
| Color | Usage |
|---|---|
| Blue | VLAN121 (public), trunk |
| Yellow | VLAN73 |
| Green | VLAN74 |
| Red | VLAN1 (mgmt), KVM |
